Draper Header Parts

Our sickle section undergoes a unique heat treatment process known as Austempering, which produces a tougher and more impact resistant structure for improved harvesting performance!

Competitive parts may only receive heat treatment at the cutting edge, leaving the rest of the section vulnerable to breakage. The entire sickle section is through-hardened for high ductility and high hardness. Our Austempered Sickle Sections can be used in any harvest situation, designed and engineered to perform better than standard sickle sections.

• Austempered sickle sections are made up of substantially tougher, longer lasting material that has proven less chipping, fewer broken sections and noticeably less wear
• Unique process that involves through-hardening the entire section, versus competitors only heat-treating the cutting portion
• Substantial lab and field testing confirm worry free harvesting performance

• Distinctive MacDon box assures you of MacDon Austempered sickle sections
• Only the MacDon logo guarantees that it’s original

Designed to self sharpen as they wear, meaning your sickle sections will continue to stay sharp throughout the section life.

• Guaranteed hole spacing means your replacement sickle section will fit your MacDon perfectly every time, inconsistently spaced holes lead to premature bolt failure costing valuable downtime
• Best fit paired with your MacDon guards

Fine Section Serrations:

• 14 serrations per inch
• Provides optimal cutting characteristics in green forage, high moisture and hay crops
• Delivers a clean cut, increasing efficiency and decreasing horsepower demand during harvest
• Suitable for: Forage, Grasses, Flax and Lentils



Coarse Section Serrations:

• 9 serrations per inch
• Provides optimal balance of durability and cutting edge technology in thick stem crops
• Recommended use for on the ground applications, coarse sickle sections hold their cutting edge longer in these high debris conditions
• Suitable for: Wheat, Soybeans, Canola, Cereals and Pulses



Ultra-Coarse Section Serrations:

• 4 serrations per inch
• Provides peak cutting performance and durability in thick stemmed crops
• Recommended use for thicker stemmed crops and adverse conditions

Fully thru-hardened for toughness, MacDon Performance Parts Guards are then induction hardened in key high wear areas so they will keep their cutting edge longer.

Pointed Guards
The Pointed Guard is designed to be used when your MacDon header is low or touching the ground while cutting. This guard protects your knife sections with a reinforced rib to provide stronger impact resistance against rocks and debris.

Stub Guards
The Stub Guard is designed to reveal more of the sickles cutting edge, increasing cutting abilities in tough crops such as grasses and canola. Stub guards should only be used in off-ground applications where fewer rocks and debris are encountered by the cutting components. These guards are incomplete without a top half.

Pointed Guards
The Pointed Guard is a multi-purpose knife guard designed to glide along the surface at high cutting speeds for a clean, even cut every time.

PlugFree™ Guards
The PlugFree™ Guard is designed to get the knife as close to the ground as possible while still protecting the blade from damaging debris in the field. It resists plugging even in the nastiest conditions providing the closest, cleanest possible shave of the ground.

• Fully adjustable hold down maintains tight clearance between guard and section
• Self-cleaning guards are less likely to plug the knife in tough crops such as grasses and canola

• Critical dimensions ensure a perfect fit on your MacDon machine every time, allowing for minimal downtime and quick replacements
• Perfect fit guarantees optimal cutting performance and extended wear
• Provides perfect guard fit up with cutter bar poly, resulting in proper mounting with the cutter bar

• Cutting surface is induction hardened providing targeted hardening in high contact areas, resulting in a superior cutting performance
• Harder and more durable than traditional hardening methods provides for higher impact strength and wear resistance

• Shape of the pointed guard is designed to separate the crop as well as maximize cutting surface to provide superior cutting performance
• Guard tang is engineered to maintain the proper clearance to get the most from your MacDon knife sections

• Provides extremely durable metal core throughout which allows for increased wear life and durability
• Thru hardening process results in sharper cutting edges, harder wear surface across entire guard and thinner end points, guiding crop precisely into cutting surfaces

MacDon Performance Parts Draper Belts feature exclusive MacDon branding for authenticity and a number of engineering benefits.

• Prevents seed loss at leading edge of draper
• Keeps drapers cleaner longer for extended life

• Fully reversible draper for double draper life
• Provides accurate tracking in all harvesting conditions

• High tensile strength material resists stress from stretching and pulling yielding maximum durability
• Reinforced double hem draper edges provide extended draper life
• 2 ply construction for increased durability

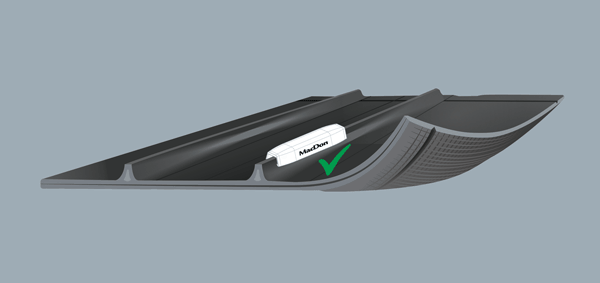

Metal slat connectors provide increased durability and an optimal connection for longer lasting drapers.

• Superior cleat strength capable of conveying the heaviest of crops
• Increased belt stiffness for unsurpassed cross-directional strength

Square and Taper cleat options available.

• Excellent traction in all crop conditions
• Specifically designed to work with MacDon rollers

MacDon Performance Parts Skid Shoes provide a durable and replaceable wear surface when cutting on the ground.

All MacDon skid shoes are made up of more durable, longer lasting material that is field tested in the toughest real-world conditions.

• MacDon exclusive wrap around edges prevent debris from entering in-between your steel backing plate and skid shoe, extending life
• Allows turning with the header on the ground without damaging skid shoes

Exclusive tapered leading edge results in unsurpassed protection of your steel backing plate, blocking out debris in harsh soil conditions.

All MacDon skid shoes come with pre-drilled holes for guaranteed fit, minimizing replacement time.

MacDon Performance Parts Crop Lifters are specifically designed for MacDon headers to lift lodged crops off the ground. They all feature the following engineering benefits:

• Lifter angle is specifically designed for MacDon headers to provide optimal functionality through all tilt angles
• Custom fit to MacDon Performance Parts Guards to minimize movement during cutting and prevent loss of lifters
• Curved contact point allows lifters to glide along the ground without digging or getting knocked off

Take FlexDraper® Performance Over the Top! The ContourBuddy™ Performance Option is a simple mechanical system allowing the operator to run their FlexDraper unlocked in Flex, and utilize Auto Header Height mode while cutting crops off the ground.

To accomplish this, the design uses strategically placed wheels under the FlexDraper for instant response of the Flex/Float system, mirroring the contours of the field while cutting up to 10 inches (250mm) from the ground surface. The ContourBuddy™ provides operators with a number of performance benefits including:

• Use of flex mode and auto header height while cutting off the ground - adjustable to leave between 4’’ (100mm) and 10’’ (250mm) of stubble*
• Smooth, consistent stubble heights – ideal for reducing erosion, catching winter snow, and setting you up for planting
• Reduced operator input – Set your cut height and go!
• Reduced digging/picking stones
• Eliminates the need for gauge wheels up to 10’’ (250mm) stubble height*

*True range varies slightly depending on field soil conditions and combine model.

Draper Header Service Kits from MacDon are a convenient “First Aid Kit” for your header. These kits contain a selection of high wear parts such as guards, sections, and hardware, and are ideal to have on hand at all times.

Available for various FD/D Series Draper Headers.

Guard Kits from MacDon include all guards required to do a complete cutterbar replacement. Kits are shipped on a small pallet for ease of storage and handling.

Available in both single and double knife configurations for various FD/D Series Draper Headers.

Note: Hardware sold separately

Knife Assembly Kits from MacDon provide all necessary knife segments and splice kits required to replace the complete knife on a header. Come packaged in one box for ease of transportation from dealership to field.

Kits are available in both single and double knife configurations for various FD/D Series Draper Headers.

Note: Knife Heads are sold separately

Save time and frustration - quickly replace damaged finger holders on MacDon Feed Augers with the Split Finger Holder. Available for all MacDon combine headers.

All Split Finger Holders feature the following engineering benefits:

• Allows for the quick replacement of damaged feed auger finger holders
• Does not require removal of all drum fingers in order to slide over new holder
• Does not require disassembly of drum if spare finger holders run out
